ADX 195

I

Take your UAS missions to the next level with the ADX 195—a twin-cylinder powerhouse engineered to deliver exceptional performance in an ultra-compact form. As the smaller sibling to the ADX 390, the ADX 195 packs remarkable strength and reliability into a nimble package, making it a prime choice for both commercial and military UAS operations.

Effortless Power, Remarkable Lightness

  • Outstanding Power-to-Weight Ratio: Enjoy significant thrust without weighing down your UAV—ideal for extended flight times and extra payload capacity.
  • High-Output Design: Building on the proven foundation of the 180B2, the redesigned piston, cylinder, and strengthened con rods mean you get more power for your most demanding missions.

Engineered for Optimal Reliability

  • Fully CNC-Machined Crankcase & Backplate: Milled from 7075 super-strong aluminum alloy, the ADX 195 is built to endure rigorous UAS operations.
  • Advanced Rotary Valve Fuel Intake: Experience precise timing control and a longer service life compared to traditional reed valve systems.
  • Minimal Vibration: Smoother running thanks to an optimized twin-cylinder layout and a state-of-the-art ignition unit.

Customized to Meet Your Needs

  • Dual Spark Head Option: Enhance safety and reliability with redundant ignition for mission-critical applications.
  • Customizable Crankcase & Cylinder Head: Tailor your setup for specialized cooling, performance tweaks, or unique design requirements.
  • Optional Sensor Positions: Seamlessly integrate additional sensors to gather essential data and optimize flight performance.

Power That Won’t Weigh You Down

Upgrade to the ADX 195 and discover how a compact engine can deliver extraordinary results for your UAS. Ready to experience smoother performance, greater durability, and unmatched power in a twin-cylinder design? Contact us today and watch your UAS missions reach new heights.

Displacement: 195ccm

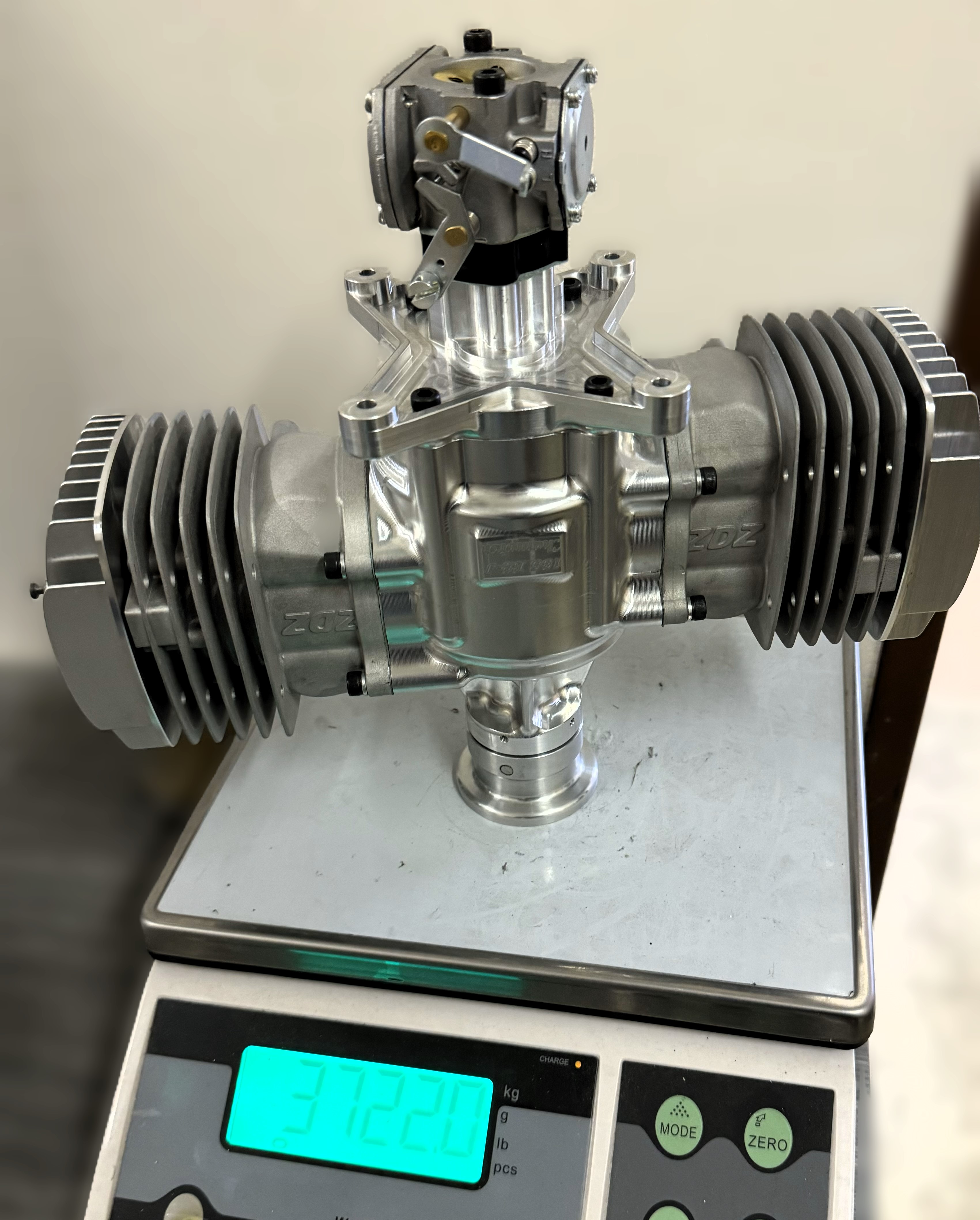

Weight: 3722g/5040g with el. starter)
Bore: 52mm
Stroke: 46mm
RPM range 1000-8500ot/min
Ignition : Processor controlled 4,8-7V
Fuel mixture N95+rec. oil: 1:35
Recomm. twinblade props: 32x12, 33x12
Recomm threeblade props: 30x13

  1. Rotation Options: Our engines can be customized to operate in either a clockwise (CW) or counterclockwise (CCW) rotation. This provides flexibility to choose the rotation that best suits your specific system requirements.

  2. Exhaust system:  You can choose betwen standard SSA compact and direct mount systém or specific solution.

  3. Double Spark Plug Heads: Engines can be equipped with double spark plug heads to increase safety and reliability. This feature ensures that your engine continues to operate in the event of a spark plug failure, offering uninterrupted performance and peace of mind.

  4. Additional Sensor Mounting Position: Engines could be equipped with an additional sensor mounting position on either the cylinder heads or crankcase. This provides the flexibility to tailor the engine to your exact needs, allowing you to achieve optimal performance and functionality.

  5. Cylinder Head Redesign: Our engines can be completely redesigned to provide easier cooling or fit into your cowl space. This feature ensures that your engine not only performs at its best, but also fits seamlessly into your system.

  6. Electric Starter: Engines could be equipped with an electric starter for easy and efficient start-up. This feature saves time and effort, allowing you to focus on your work and get the job done quickly and efficiently.

  7. Automatic Deco Valves: Engines could be equipped with automatic deco valves, making restarts in the air easy and stress-free. This feature allows you to focus on your flight and enjoy a smoother and more comfortable experience.

  8. Power Generator: Engines can be designed with brushless generators that provide superior power to meet your specific needs. This feature ensures that you have the power you need to operate all of your equipment, no matter what the situation.

  9. Custom-Made Backplate: Engines could be designed with a custom-made backplate that offers a mounting point and design tailored to your specific needs. This feature ensures that your engine fits seamlessly into your system, providing optimal performance and functionality.

  10. Electronic Fuel Injection: Engines could be equipped with electronic fuel injection for improved efficiency and performance. This feature ensures that you get the most out of your engine, with increased fuel economy and power.

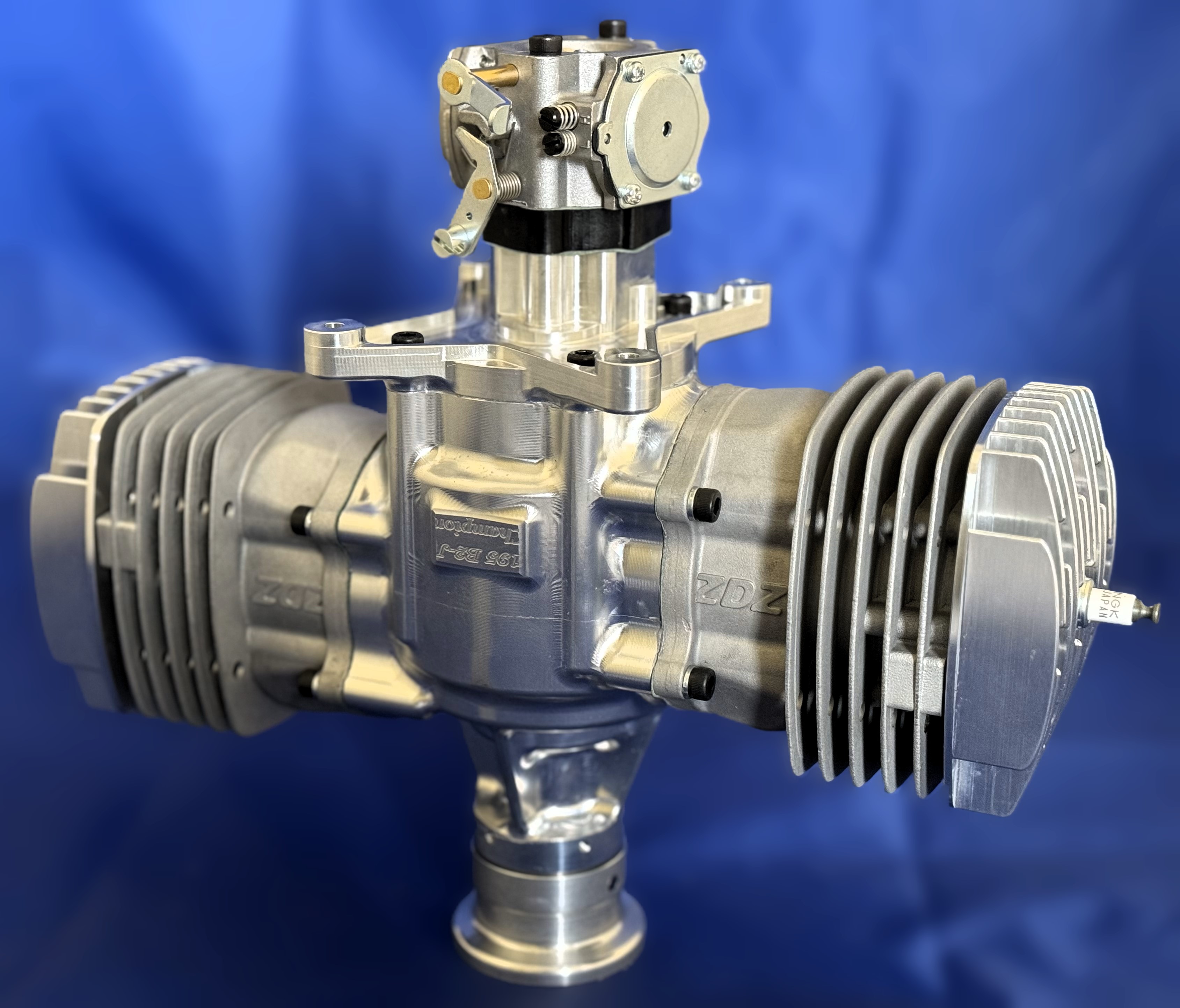

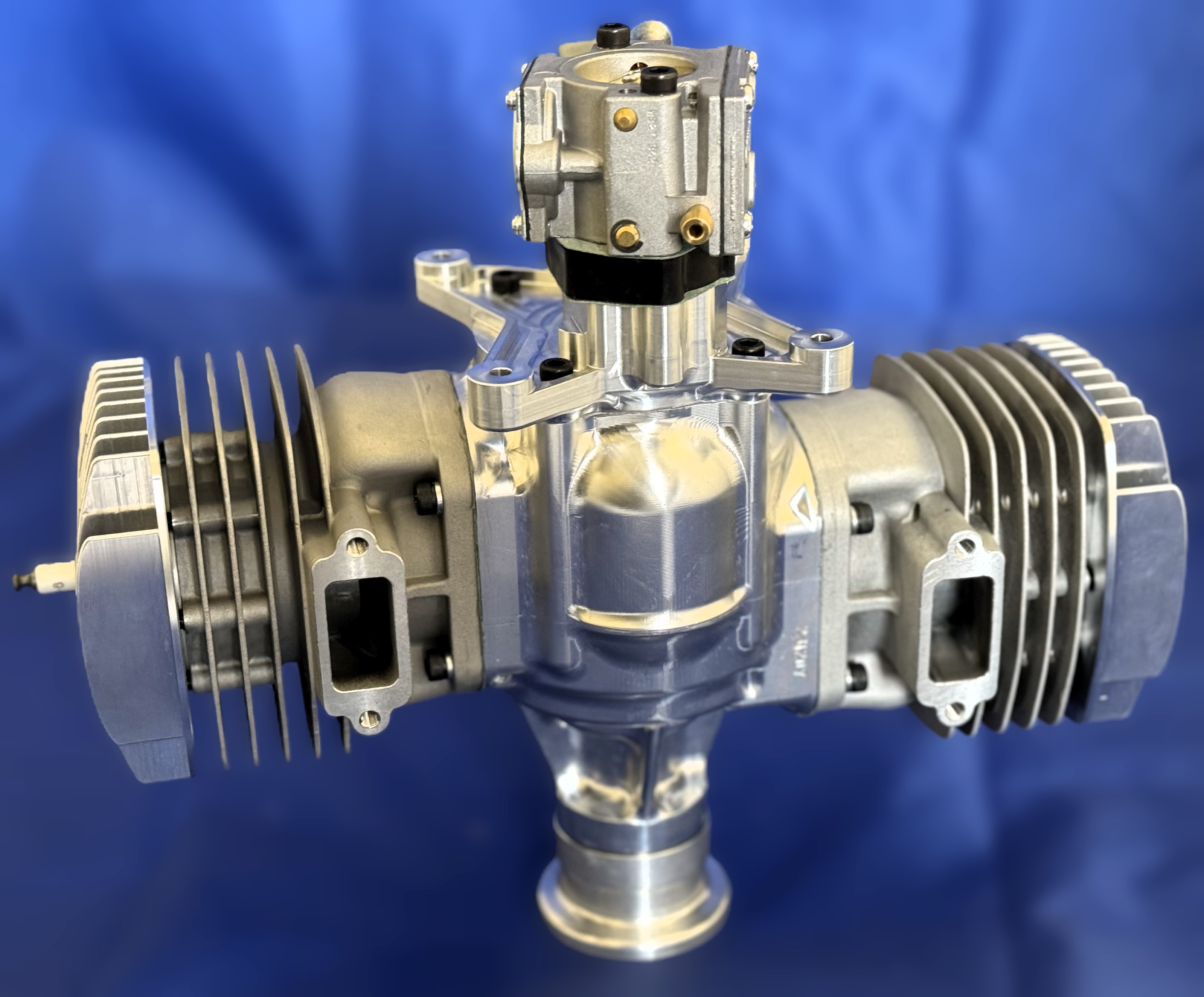

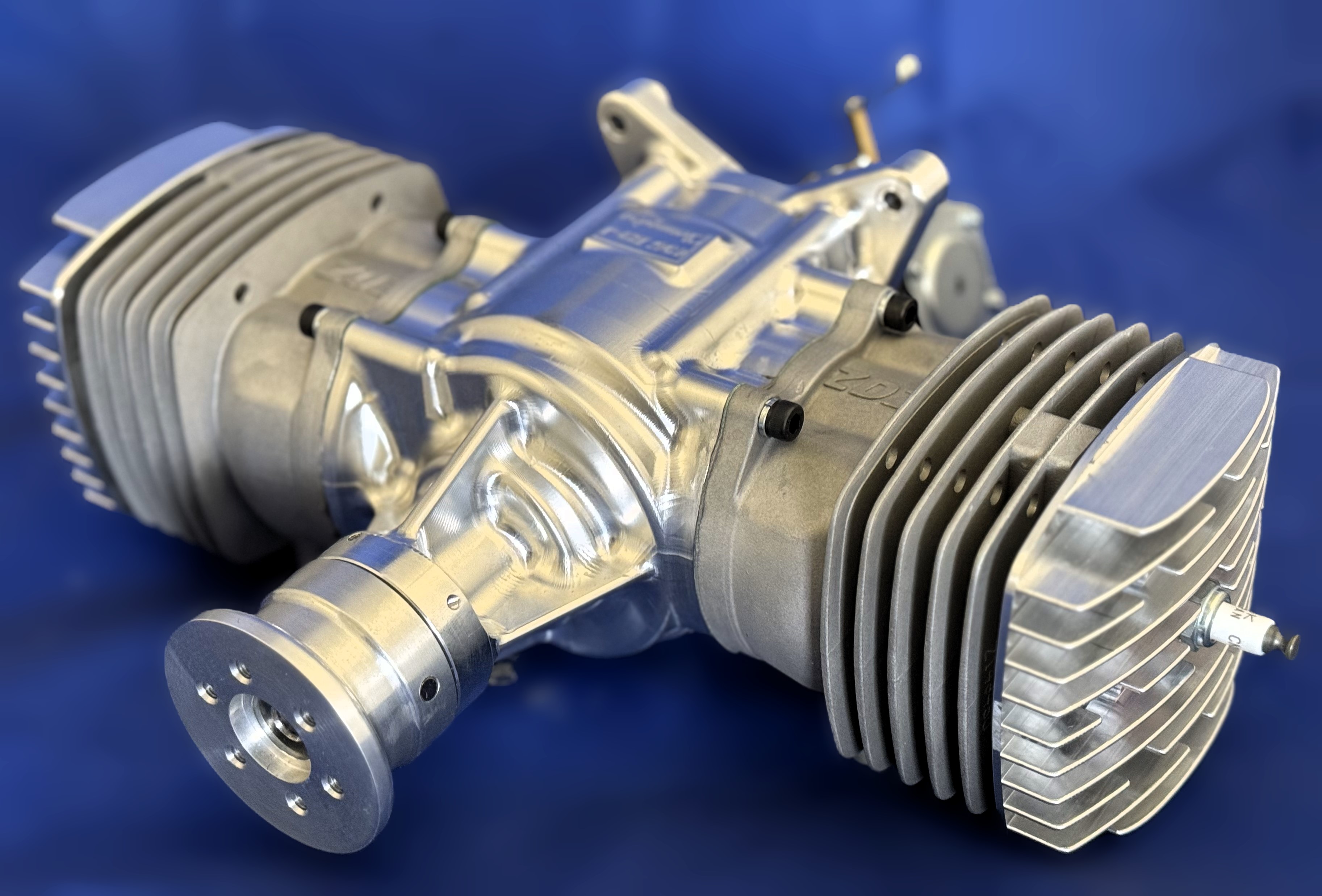

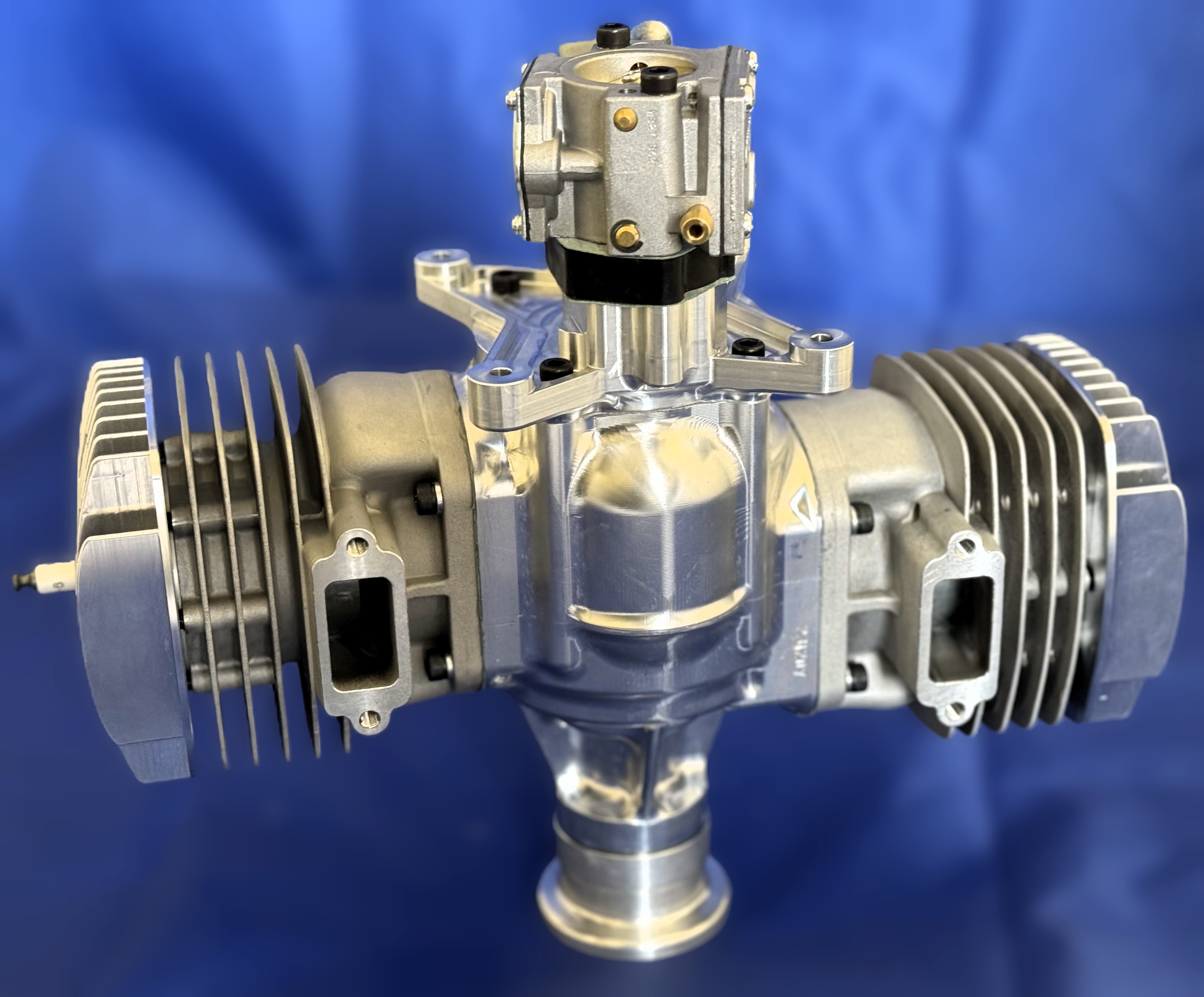

ADX 195_1.jpg ADX 195_2.jpg ADX 195_3.jpg

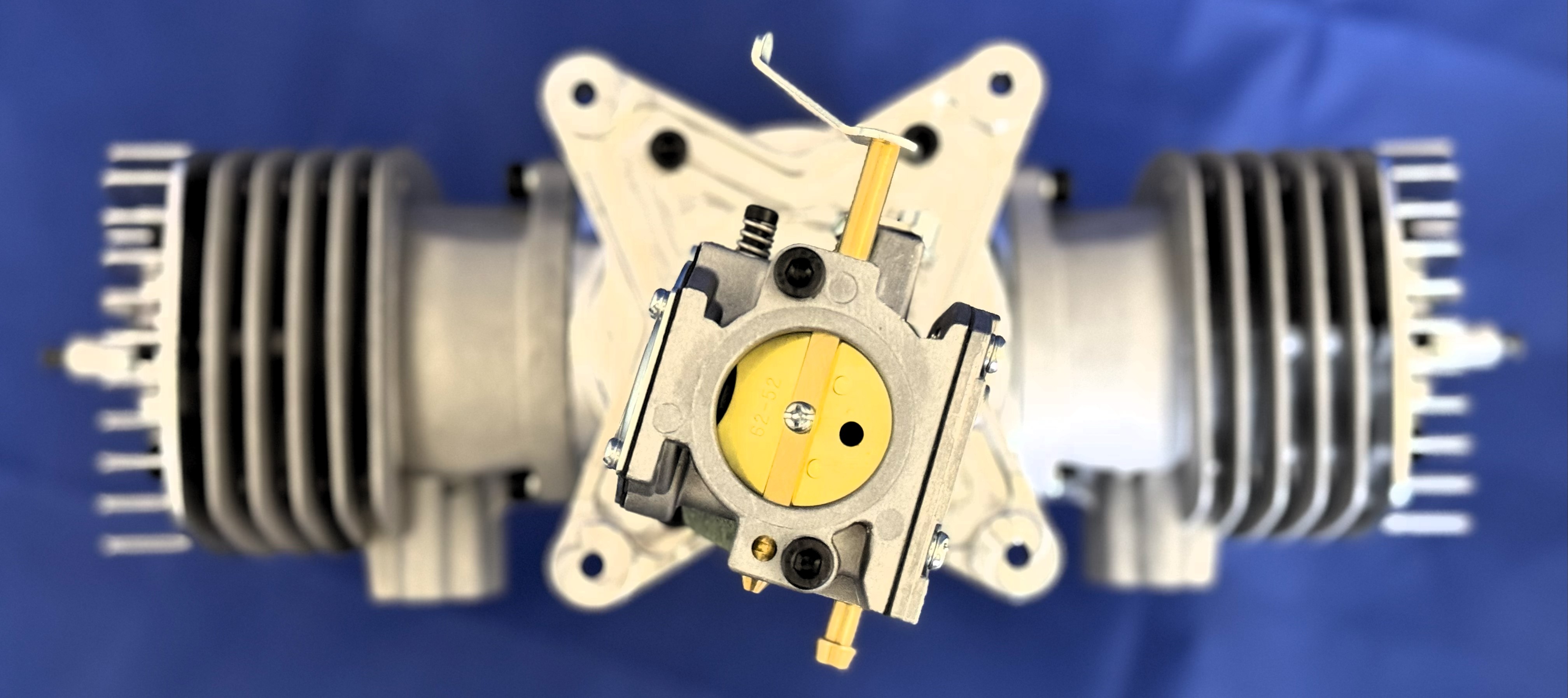

ADX 195_4.jpg ADX 195_weight.jpg
