ADX 500

Take your UAV projects to the next level with AirDynamiX’s latest generation of CNC crankcase quad boxer engines—featuring the powerful and ultra-compact ADX 500. Built for serious industrial applications, these engines offer:

Unbeatable Performance & Reliability

  • Low Vibration, High Output: Enjoy super-smooth flight and top-tier power without sacrificing stability.
  • Easy Cooling & Durability: The cutting-edge cylinder design and separated heads ensure optimal heat dissipation and long-lasting performance.

Modular, Customizable Design

  • Secure Crankshaft & Engine Architecture: Boost reliability and maximize uptime with robust construction.
  • Add & Modify Sensors: Easily integrate additional sensor positions or tailor cylinder heads for advanced cooling—meeting your specific project needs.
  • Multiple Generator Options: Choose from three different generator types, front- or back-mounted, for hassle-free power management.
  • DUAL SPARK PLUG Upgrade: Elevate safety and redundancy for mission-critical operations.

Why settle for less when your UAV’s success is on the line? With the ADX 500, you’re investing in unmatched performance, exceptional power-to-weight ratio, and the confidence that comes from AirDynamiX’s industry-leading engineering. Upgrade to the new standard in UAV propulsion and experience how reliability, modularity, and sheer power come together to give your projects the competitive edge.

Displacement

493 ccm

Weight

11800g w/o starter/13300g w.starter  (ign.included)

Bore

56mm

Stroke

50mm

RPM range

800-8500 ot/min

Ignition

processor controlled, dampened casing,

Spark plugs

CM-6

Spark plug electrodes gap

0,5-0,7mm

Intake system

Reed valves (Adler Italy)

Recommended oil

Full synthetic oil for two stroke air cooled engines

Recommended fuel

Automotive gas BA 95 or higher

Fuel mixture oil:gas

1:30(break-in) 1:40 (normal run)

Carburettor

Walbro WB-27

Normal/Max CHT

160/200 degrees of Celsius

Fuel consumption

4,9l/hr @ 3500 RPM 40x16 twinblade propeller

Propeller configuration

Tractor or Pusher

MTBF

320hrs





  1. Rotation Options: Our engines can be customized to operate in either a clockwise (CW) or counterclockwise (CCW) rotation. This provides flexibility to choose the rotation that best suits your specific system requirements.

  2. Exhaust system:  You can choose betwen standard SSA compact and direct mount systém or specific solution.

  3. Double Spark Plug Heads: Engines can be equipped with double spark plug heads to increase safety and reliability. This feature ensures that your engine continues to operate in the event of a spark plug failure, offering uninterrupted performance and peace of mind.

  4. Additional Sensor Mounting Position: Engines could be equipped with an additional sensor mounting position on either the cylinder heads or crankcase. This provides the flexibility to tailor the engine to your exact needs, allowing you to achieve optimal performance and functionality.

  5. Cylinder Head Redesign: Our engines can be completely redesigned to provide easier cooling or fit into your cowl space. This feature ensures that your engine not only performs at its best, but also fits seamlessly into your system.

  6. Electric Starter: Engines could be equipped with an electric starter for easy and efficient start-up. This feature saves time and effort, allowing you to focus on your work and get the job done quickly and efficiently.

  7. Automatic Deco Valves: Engines could be equipped with automatic deco valves, making restarts in the air easy and stress-free. This feature allows you to focus on your flight and enjoy a smoother and more comfortable experience.

  8. Power Generator: Engines can be designed with brushless generators that provide superior power to meet your specific needs. This feature ensures that you have the power you need to operate all of your equipment, no matter what the situation.

  9. Custom-Made Backplate: Engines could be designed with a custom-made backplate that offers a mounting point and design tailored to your specific needs. This feature ensures that your engine fits seamlessly into your system, providing optimal performance and functionality.

  10. Electronic Fuel Injection: Engines could be equipped with electronic fuel injection for improved efficiency and performance. This feature ensures that you get the most out of your engine, with increased fuel economy and power.

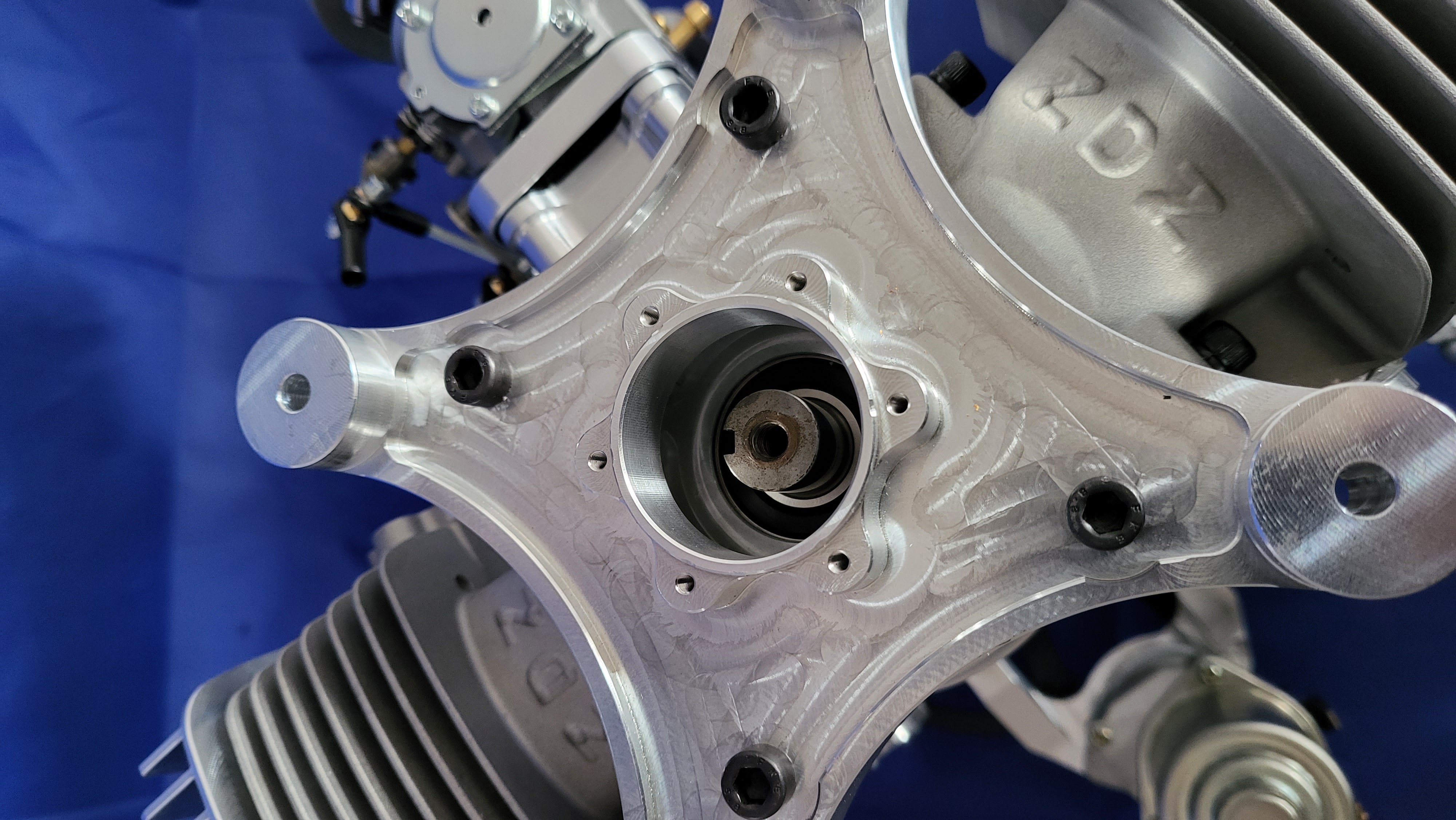

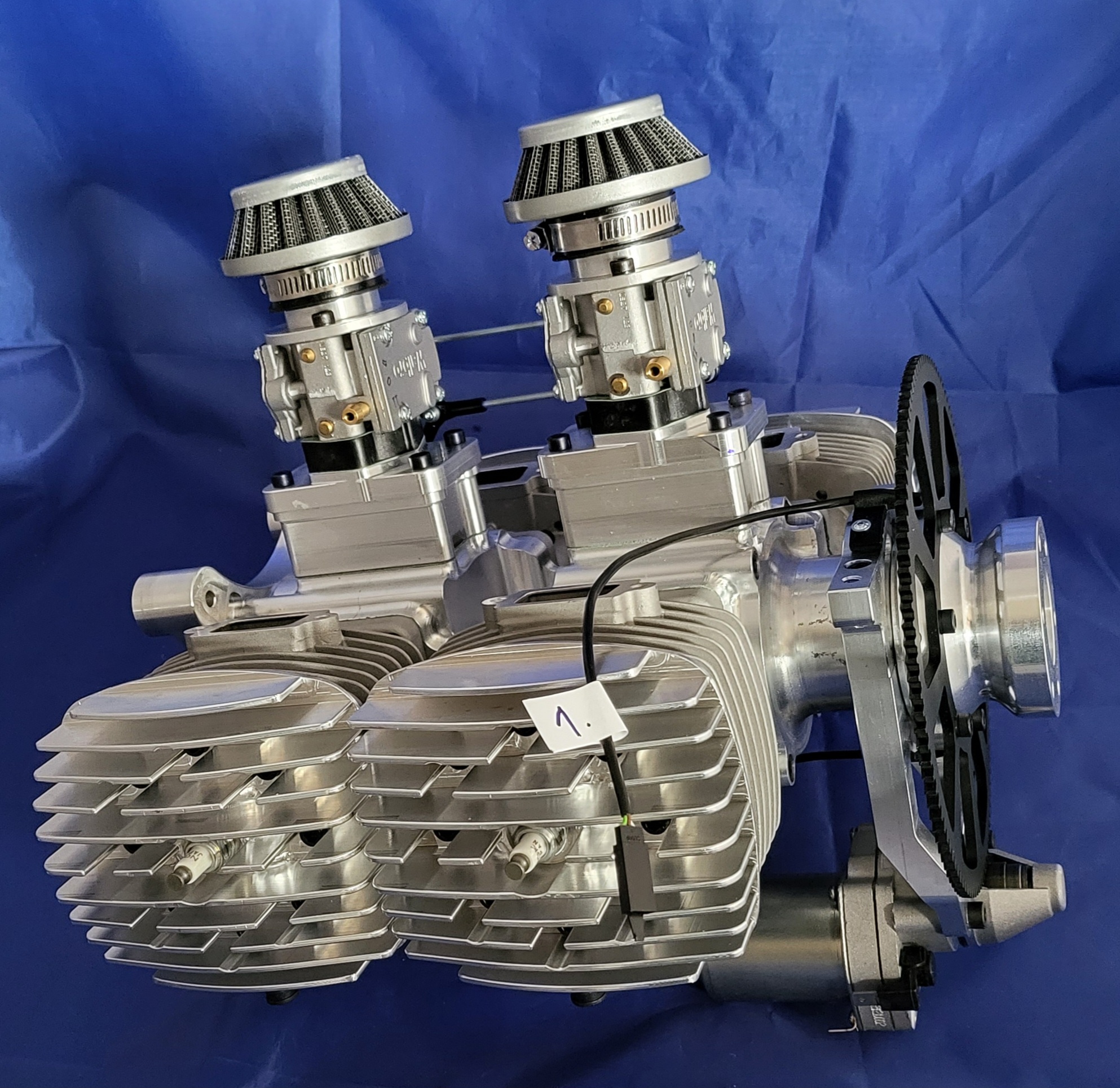

500B4 MJOLNIR AF side.jpg 500B4 MJOLNIR AF back angle.jpg 500B4 MJOLNIR Backshaft output and stator mounting point.jpg 500B4 MJOLNIR front view with starter and exhausts instaled.jpg

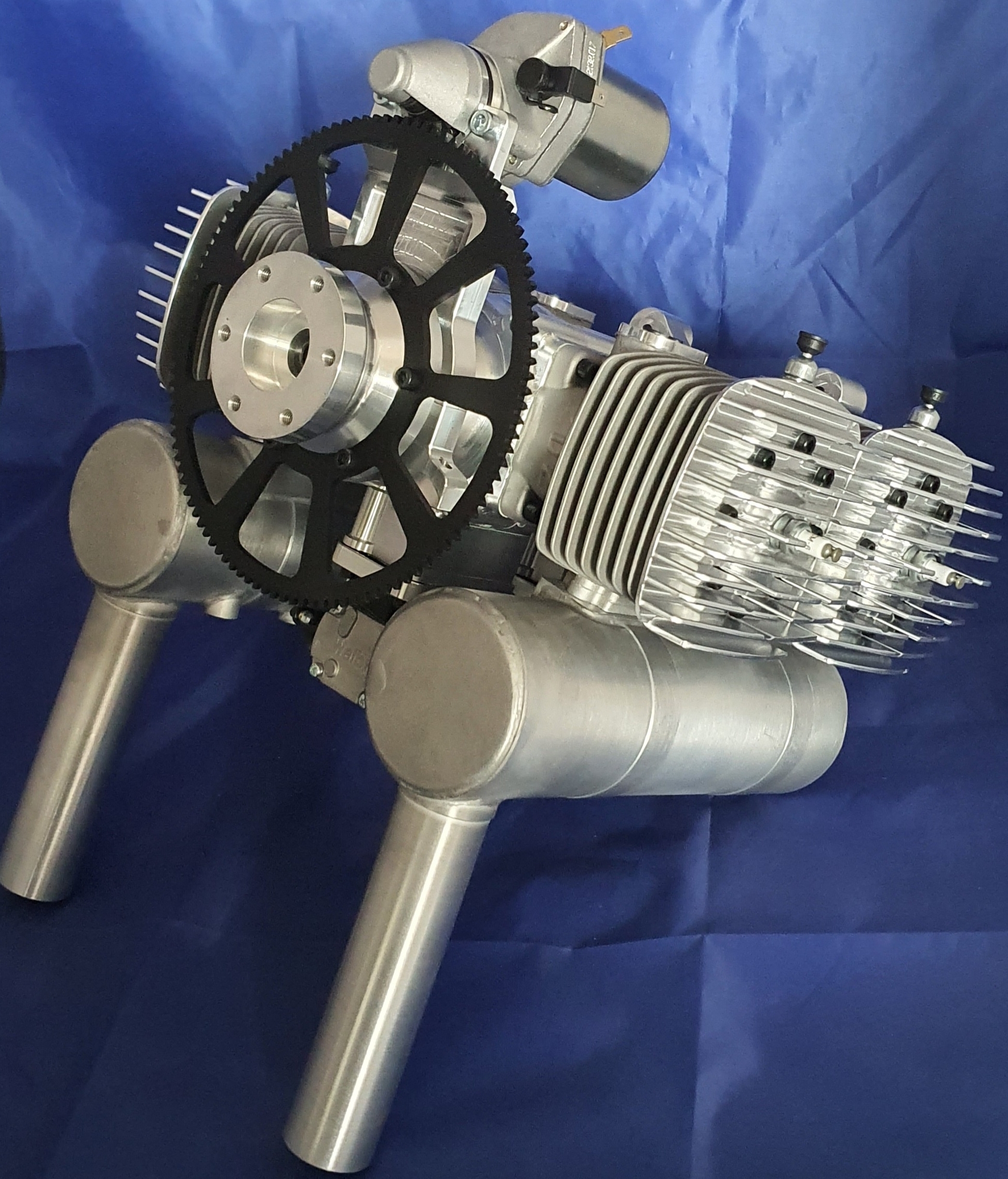

500B4 MJOLNIR angle view with starter and exhausts instaled.jpg

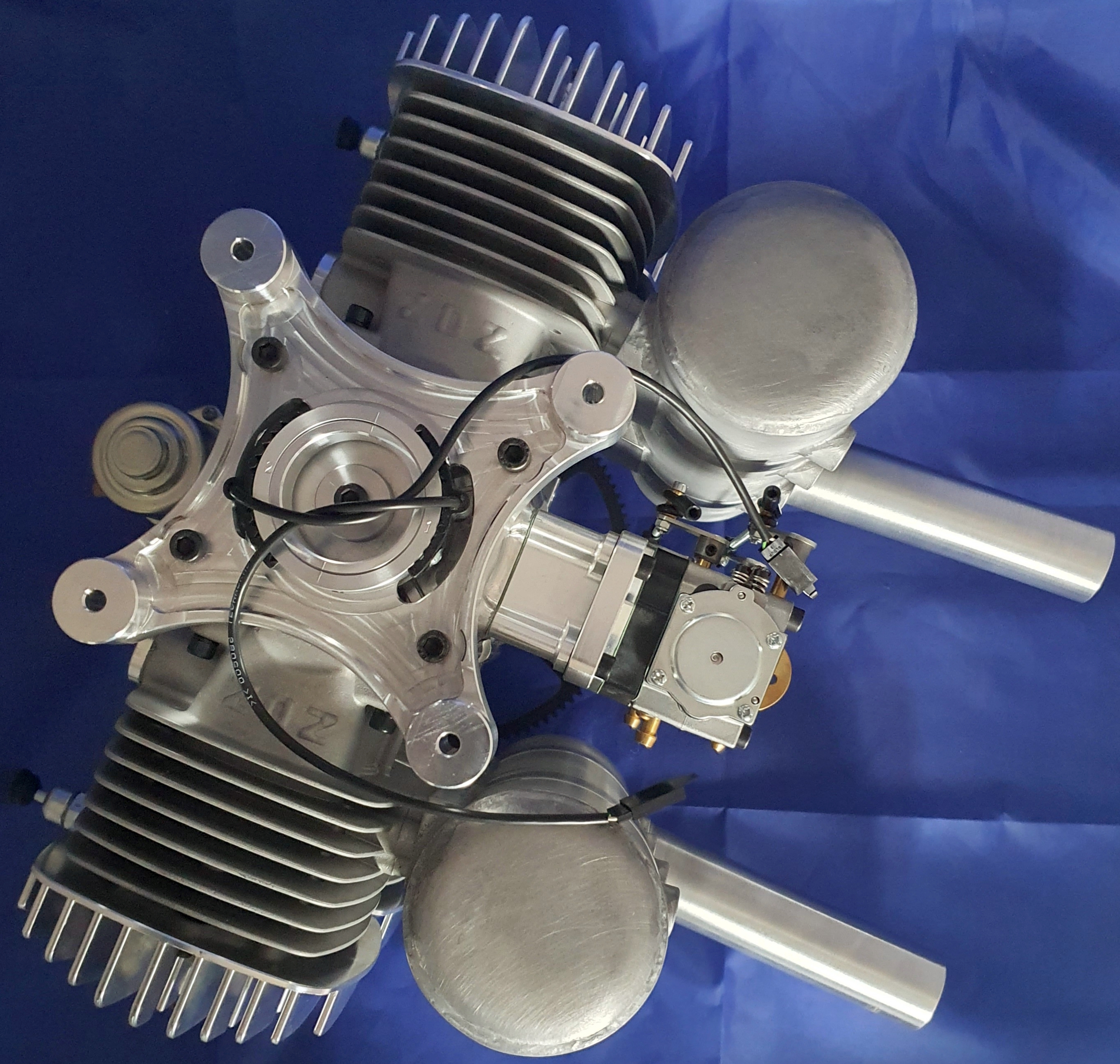

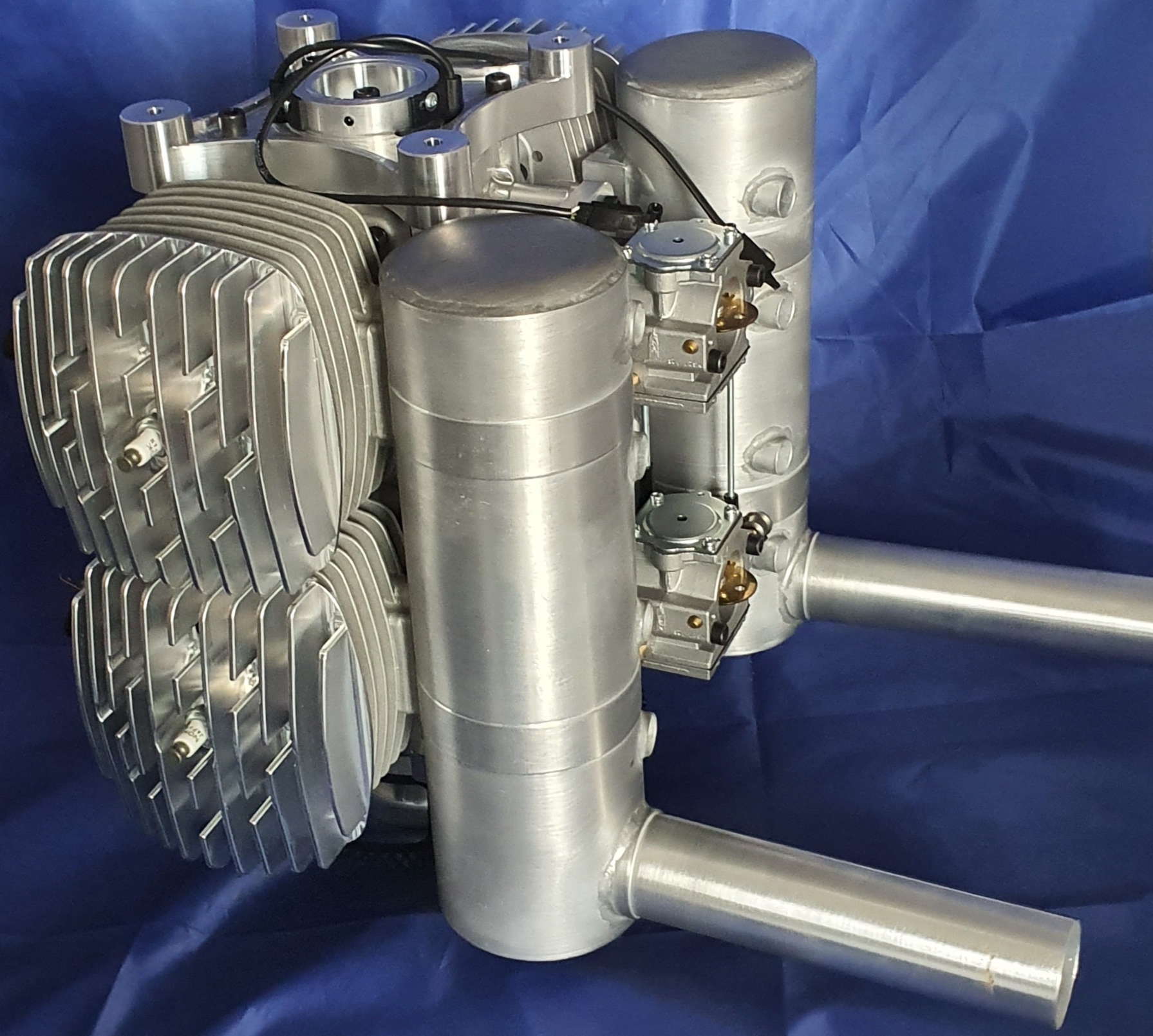

500B4 MJOLNIR angle b view with starter and exhausts installed. 500B4 MJOLNIR backside with starter and exhausts installed.jpg
