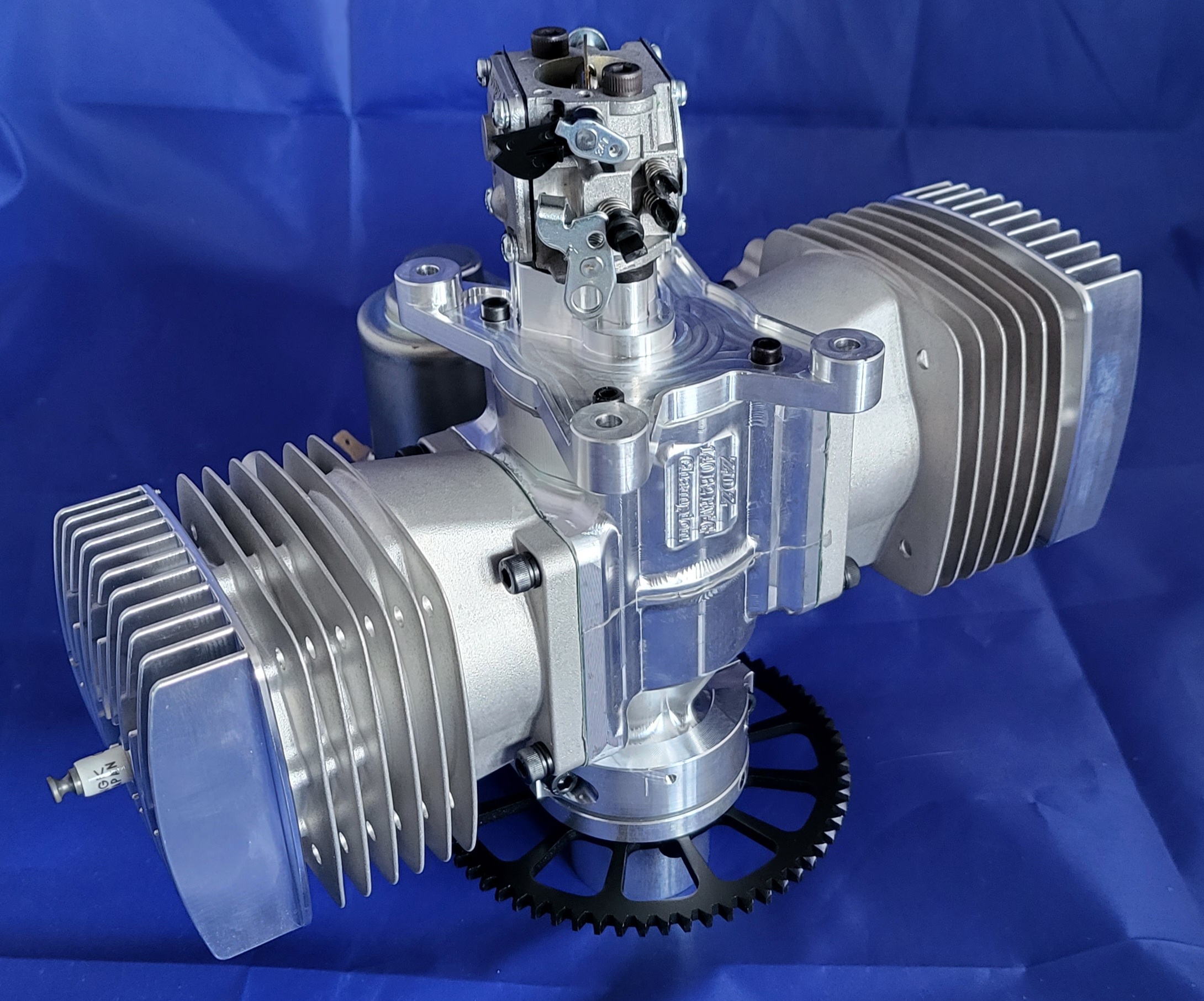

ADX 140

Looking for a highly-customizable engine for your UAV system? The ADX 140 engine is a perfect choice. With a wide range of customization options, this engine can be tailored to meet the unique needs of any UAV systems producer.

Crafted with precision, the fully CNC machined crankcase and backplate made from 7075 aluminum alloy ensure maximum durability and reliability. The backplate can be designed and manufactured according to the customer's specific needs, providing maximum flexibility in installation and configuration. And with the ability to customize the engine for pusher or tractor versions (CW and CCW rotation), you can ensure that your UAV system performs exactly as you need it to.

Featuring a unique combustion chamber shape and spark plug position, the ADX 140 delivers unparalleled power and exceptional performance. Its separate cylinder heads allow for designing and machining various sensor mounting points according to customers' needs, while its high custom tailor options include an increased surface area for better cooling and a doubled spark plug system for added safety.

With its proven cylinder head gasket technology and rotary valve fuel intake system, the ADX 140 engine guarantees maximum longevity and precise timing control. And thanks to its superior smoothness and minimal vibrations, this engine delivers a seamless flight experience for any UAV system developer.

Upgrade your UAV system today with the ultimate in power, performance, and customizability - the ADX 140 engine.

Displacement:	140ccm
Weight:	2500g without ignition
RPM range:	1000-8500RPM
Ignition:	Processor. controlled 4,8-7V
Fuel mixture N95+rec.oil:	1:35
Recomm twinblade props:	28x12, 29x9,29x10, 30x10
Recomm. threeblade props:	27x10/9

ADX 140 with starter dimensions drawing in PDF

ADX 140 Extended head size without starter drawing in PDF

ADX 140 without starter drawing in PDF

ADX 140 exploded view and parts list in PDF

ADX 140 extended heads 3d empty shell in STEP

ADX 140 datasheet

Rotation Options: Our engines can be customized to operate in either a clockwise (CW) or counterclockwise (CCW) rotation. This provides flexibility to choose the rotation that best suits your specific system requirements.
Exhaust system: You can choose betwen standard SSA compact and direct mount systém or specific solution.
Double Spark Plug Heads: Engines can be equipped with double spark plug heads to increase safety and reliability. This feature ensures that your engine continues to operate in the event of a spark plug failure, offering uninterrupted performance and peace of mind.
Additional Sensor Mounting Position: Engines could be equipped with an additional sensor mounting position on either the cylinder heads or crankcase. This provides the flexibility to tailor the engine to your exact needs, allowing you to achieve optimal performance and functionality.
Cylinder Head Redesign: Our engines can be completely redesigned to provide easier cooling or fit into your cowl space. This feature ensures that your engine not only performs at its best, but also fits seamlessly into your system.

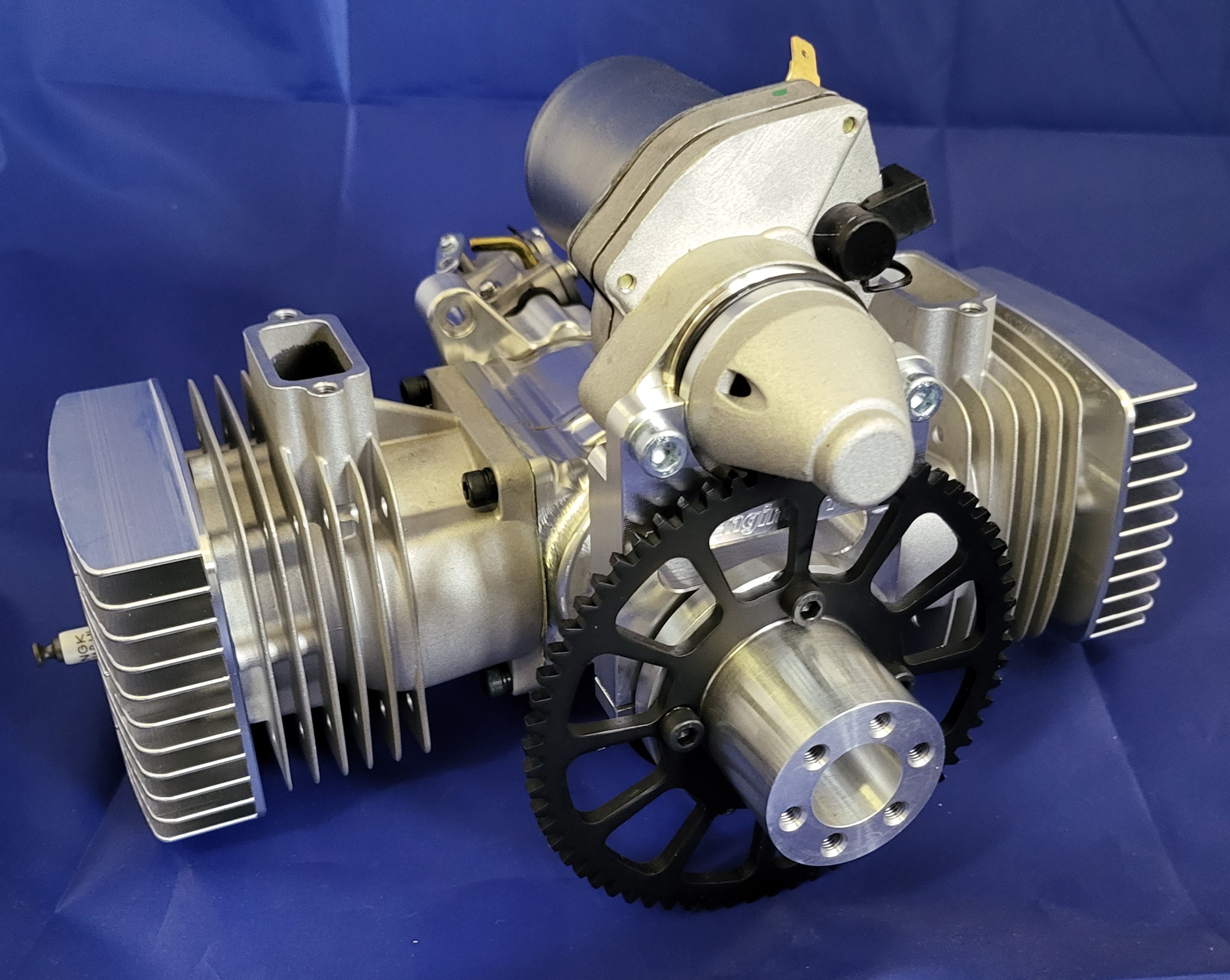

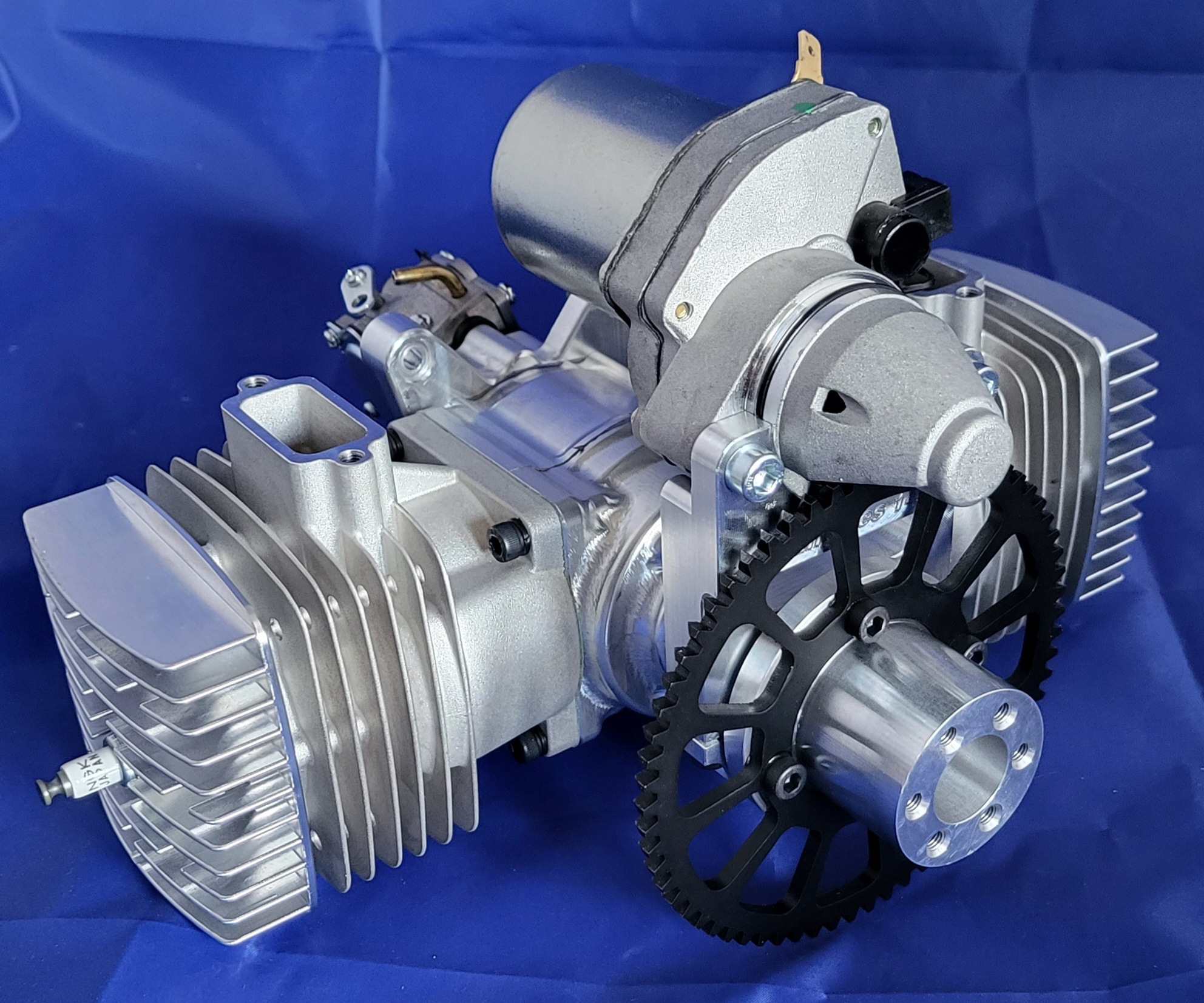

Electric Starter: Engines could be equipped with an electric starter for easy and efficient start-up. This feature saves time and effort, allowing you to focus on your work and get the job done quickly and efficiently.
Automatic Deco Valves: Engines could be equipped with automatic deco valves, making restarts in the air easy and stress-free. This feature allows you to focus on your flight and enjoy a smoother and more comfortable experience.
Power Generator: Engines can be designed with brushless generators that provide superior power to meet your specific needs. This feature ensures that you have the power you need to operate all of your equipment, no matter what the situation.
Custom-Made Backplate: Engines could be designed with a custom-made backplate that offers a mounting points as well as design tailored to your specific needs. This feature ensures that your engine fits seamlessly into your system, providing optimal performance and functionality.
Electronic Fuel Injection: Engines could be equipped with electronic fuel injection for improved efficiency and performance. This feature ensures that you get the most out of your engine, with increased fuel economy and power.
